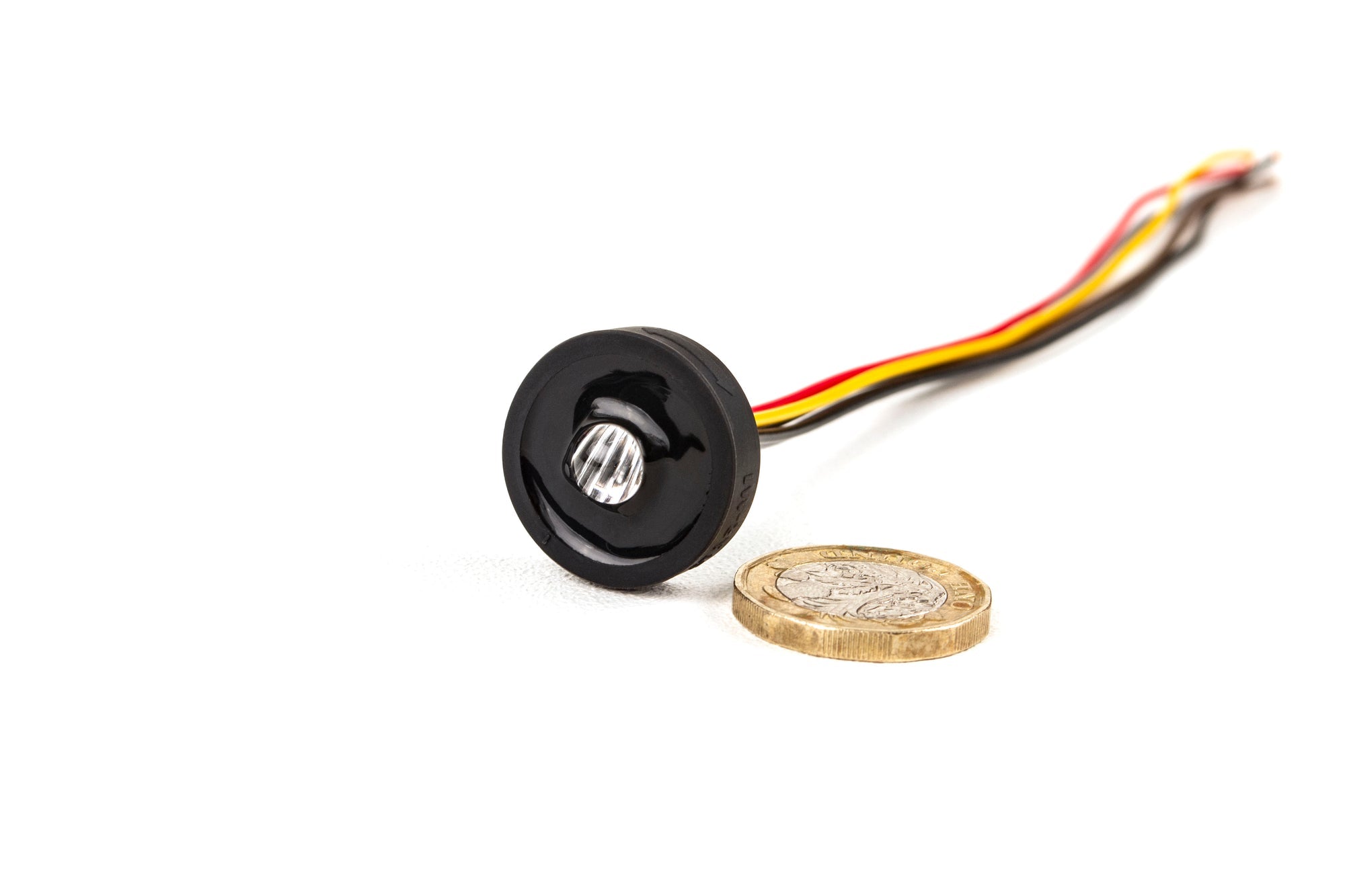

Redtronic Star M1

The Redtronic’s Star M1 Directional is an industry first miniature ultra-bright warning light. (Registered Community Design 008317283-0001).

Innovatively designed specifically for compact use, the Star M1 is the ideal solution when a discrete covert light is required. Designed primarily to be integrated into vehicle wing mirrors which offers no flash back to the driver compared to other products on the market that are generally fitted on the underside the wing mirror.

Also recommended mounting areas for the Star M1 are front/rear lamps and pod-mounted internally on the windscreen and rear window (pod sold separately), however, this versatile product can be fitted in almost any desired location thanks to its innovative small design and IP69K rating meaning it is fit for external use.

Featuring a single ultra-bright LED which passes R65 Class I when 4 units are paired. The Star M1 also features 7 flash patterns and inhibit circuit built in, enabling the product to be temporarily disabled whilst indicators are active, and synchronisation is available as standard. Redtronic are extremely proud of this innovative design to be part of our product offering giving our customers a product that can be discretely fitted as if part of the original vehicle build.

The Star M1 comes with a fully endorsed 2-year warranty.

---

• Directional Type: Covert Miniature Directional with One Ultra-Bright LED
• Material Type: PMMA Lens & Silicone Casing
• Design: Registered Community Design 008317283-0001
• Shape: Covert Compact Directional
• R65: ECE R65 Approved Class I (Blue) when 4 units are paired
• EMC: EMC/R10 Compliant
• IP Rating: IP69K
• CAP168/ICAO: CAP168/ICAO Airport Flash
• Cruise/Steady Burn: Steady Burn Available (Sync to 0v)

• Voltage Spec: 12-24VDC (Nominal) 11-32VDC (Extreme)
• Flash Patterns: 7 Flash Patterns Available
• Inhibit Circuit: Temporarily disable the product flash when Indicators are active
• Weight: 10g
• Sync: Synchronisation with other Redtronic products
• Warranty: 2 Year Warranty

---

• Option 1: Recommended Mounting - Fast Curing Silicone
• Option 2: Window Pod - Sold Separately

---

• Dimensions: Dia 23mm / 7mm Base Thickness / 10.7mm Overall Thickness
• Current Peak: 3watts
• Current Draw (12V): 630mA

---

• Amber: Yes
• Blue: Yes
• Red: Yes
• White: Yes
